Effecto FSG-4 | electrical

Effecto Group SpA
End Effectors
Díl č.: RBTX-EFCT-0010

The Flexible Smart Gripper (FSG) is a fully electrically actuated gripper with flexible, soft bodied fingers for handling objects of varying size and weight.

Obvyklá dodací lhůta: 3 weeks
‌
Recommended workpiece weight
1,5
kg
Weight
1,3
kg
Max. ambient temperature
60
℃

Nejdůležitější informace

https://a.storyblok.com/f/298593/c39628cf3b/rbtx_tool_icon_v1_lil_-svg.svg

Advantages

  • Fully electrical

  • Programmable Open - Close finger position settings

  • FDA compliant

  • Enhanced Intelligence version

    • Part confirmation

    • Force control

  • Compatible to collaborative robots

https://a.storyblok.com/f/298593/6923bbe3d7/finger-blue-with-arrows_draw-2048x1806__1_.png

Patended

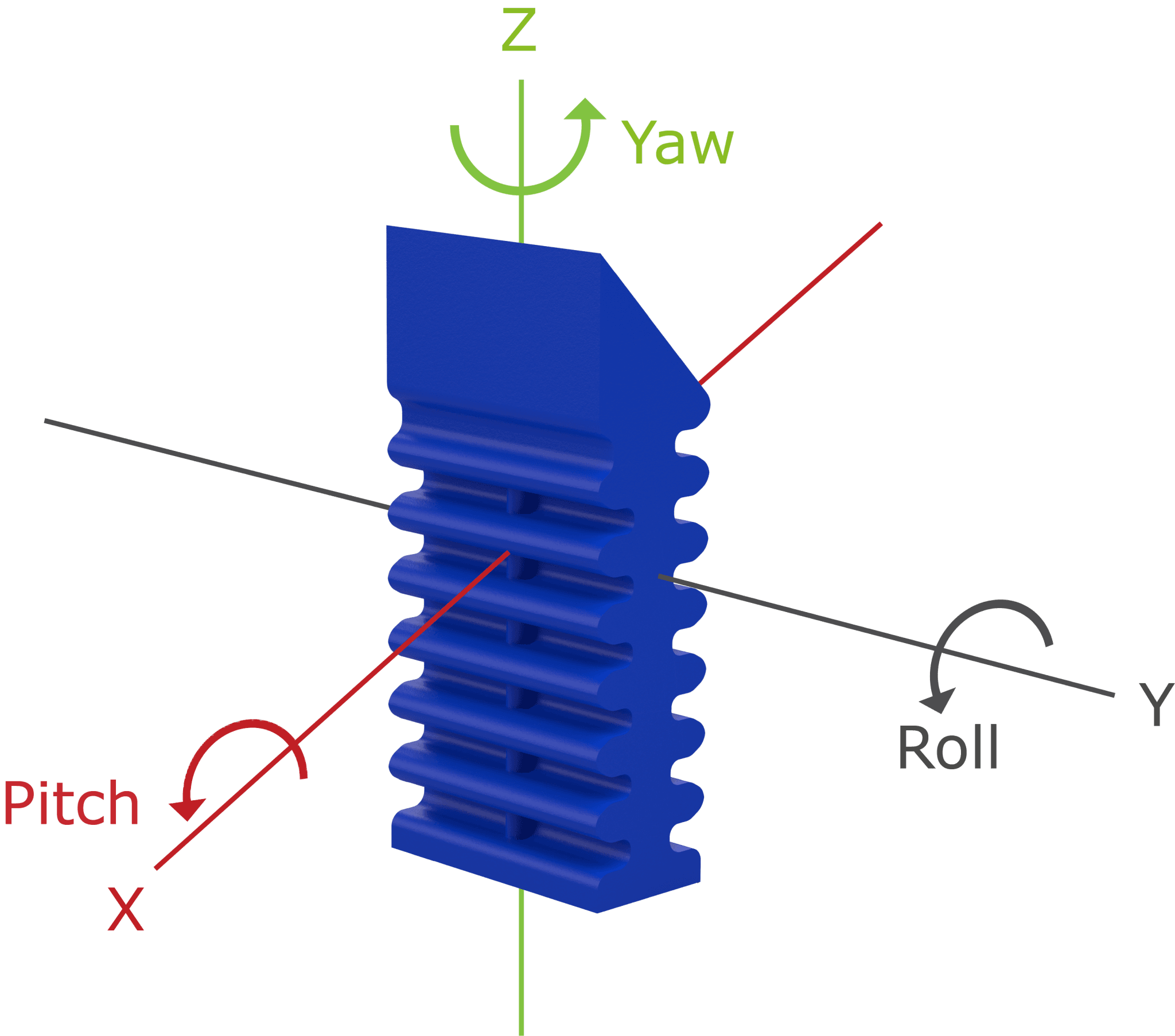

The Flexible Smart Gripper™ (FSG) allows for the picking and placing of a multitude of shapes and sizes due to its patented, FDA compliant silicone fingers, actuated by a fully electric system. The ability to rotate in the Roll degree of freedom, while keeping rigid in the Pitch and the Yaw degrees of freedom, allows for dependable, soft, and flexible gripping of delicate objects.

Nízkonákladová řešení vytvořená pomocí RBTX

Ke stažení na

CAD file
Vendor link
