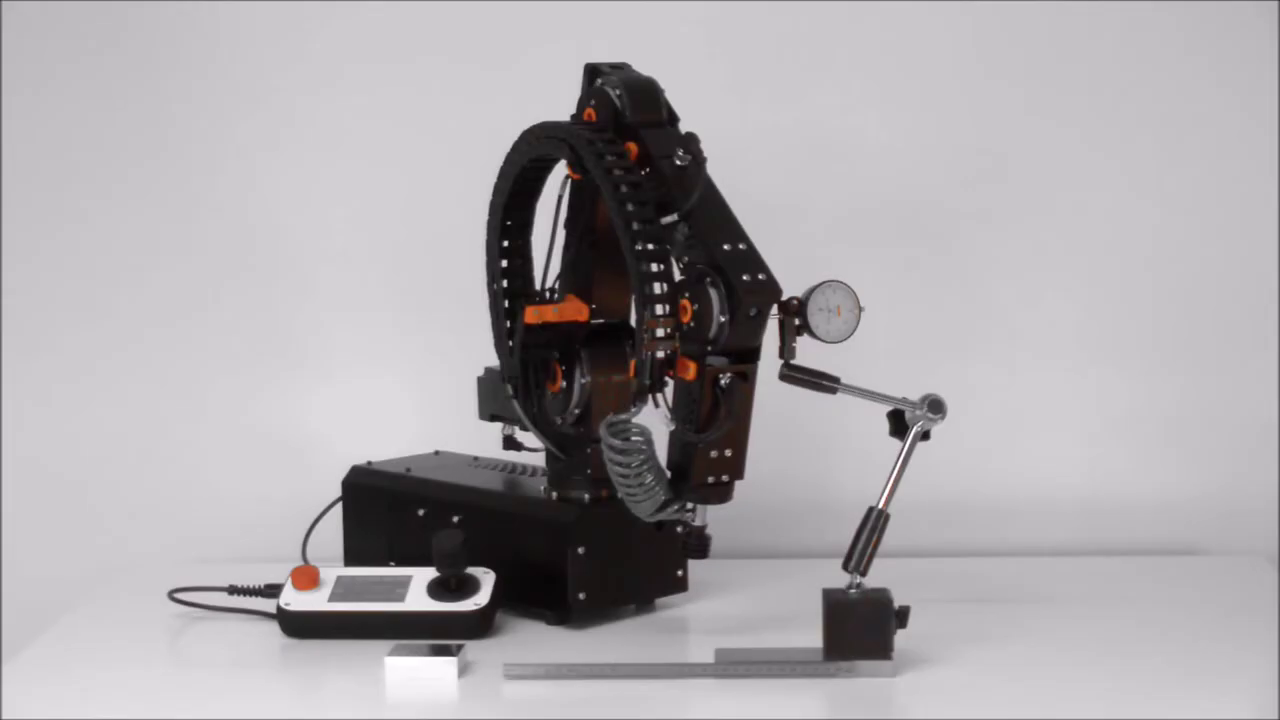

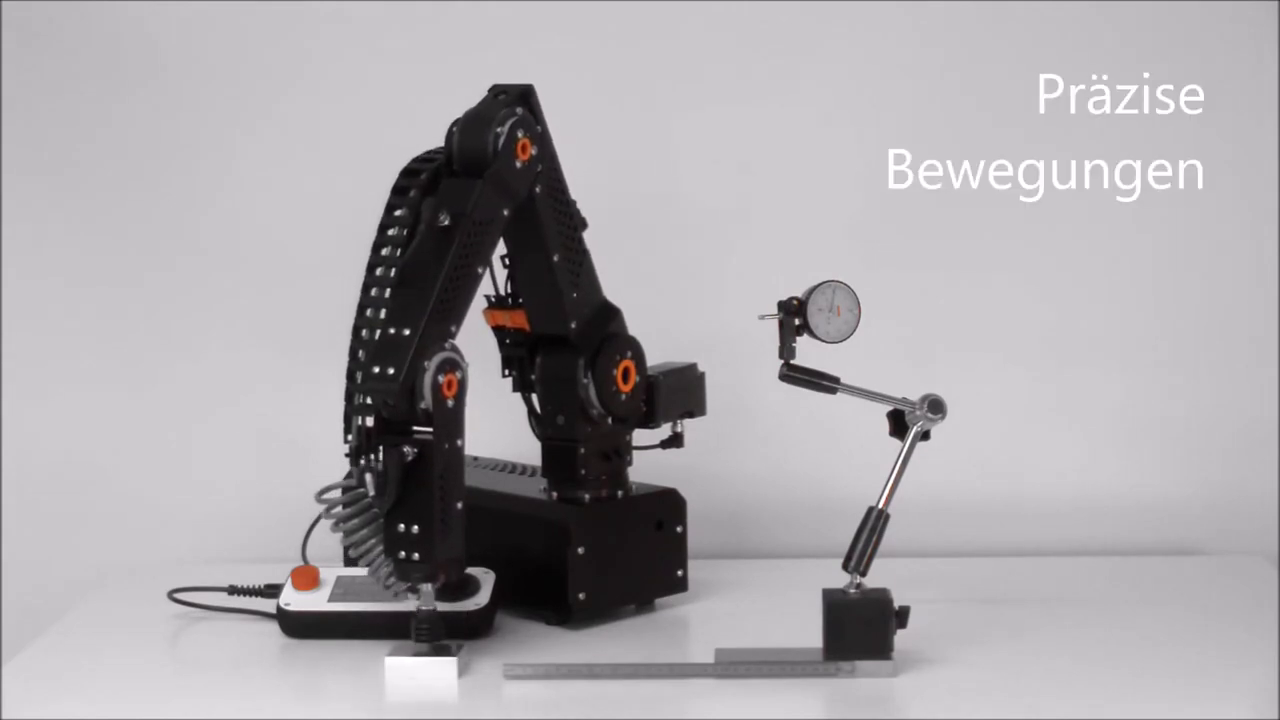

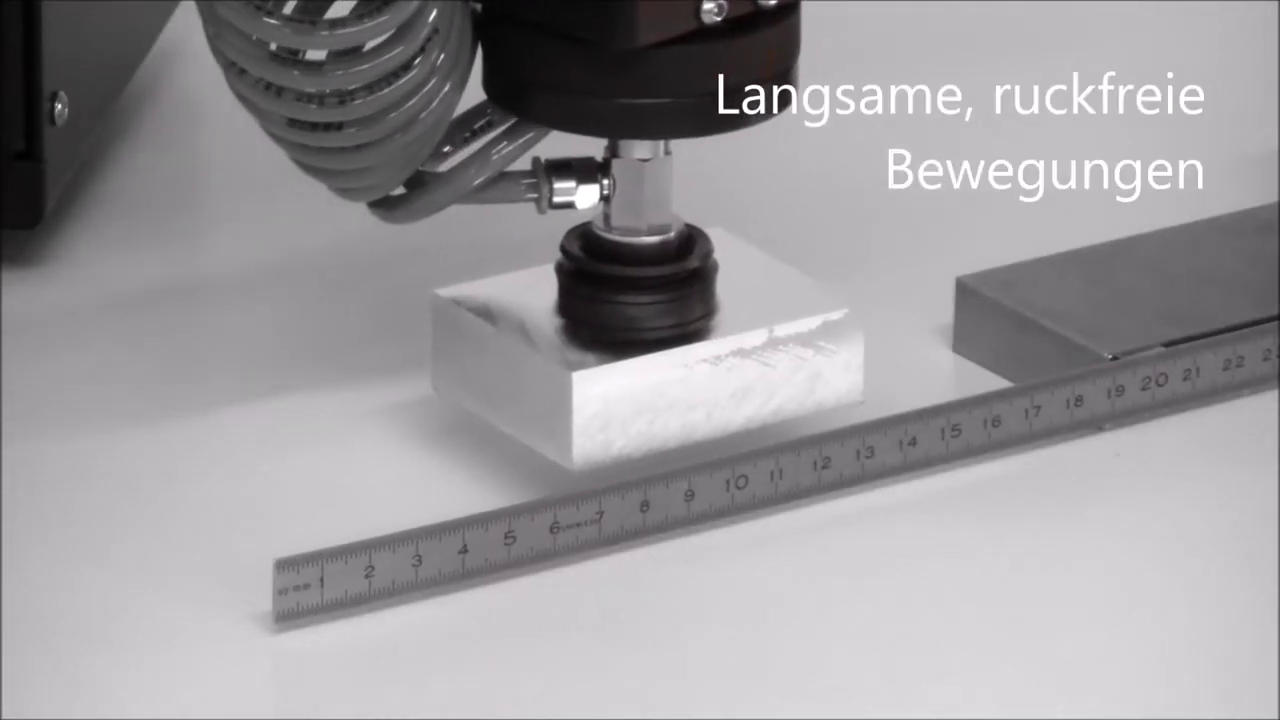

Fast & precise movements with the igus robolink DCi

Hardware Price:

dof

5

easy to

integrate

Operation

100% lubrication free

robolink® RL-DCi - complete multi-axis joint robot module with five degrees of freedom, with integrated control system at the base The robolink® DCi articulated arm robots can be used individually and flexibly. With five degrees of freedom and a control system integrated in the base, the robolink® DCi is designed for precision requirements of 0.5 m with a load of up to 0.5 kg - and it does that with a total weight of just 12 kg. Typically, this kind of articulated arm robot is used with cycle times of > 7 s. The robot is available in black as standard. The robolink® robotic components consist largely of tribologically optimised plastics. This enables high cost savings while maintaining a long service life and freedom from maintenance. Application examples Typical applications of robolink® DCi multi-axis articulated robots include pick-and-place applications in the teaching segment or quality testing processes with the smallest construction volume.
