SCHUNK - Magnetic gripper EMH, size: RP 036, electric
Díl č.: RBTX-SNK-0076
EMH is an electropermanent magnetic gripper for energy-efficient handling of ferromagnetic workpieces. It ensures reliable holding force retention in the event of an emergency stop. Its compact design, low weight and high forces make it reliable and highly flexible.
Obvyklá dodací lhůta: 3 weeks
Max Gripping force
530
N
Weight
1
kg
Nejdůležitější informace
Technical details
Holding force [N] - 530
Magnetic surface [cm²] - 6.08
Payload with horizontal magnetic surface [kg] - 8.5
Payload with vertical magnetic surface [kg] - 3.5
Module temperature increase at 5 activations/minute [°C] - 10
Module temperature increase at 15 activations/minute [°C] - 25
Activation time [ms] - 300
Min. ambient temperature [°C] - 5
Max. Ambient temperature [°C] - 50
Dead weight [kg] - 1
Protection class IP - 52
Rated voltage [V] - 24
Voltage type - DC
Max. Current Power [A] - 3.1
Max. Current Power [A] - 0.15
Controller electronics - integrated

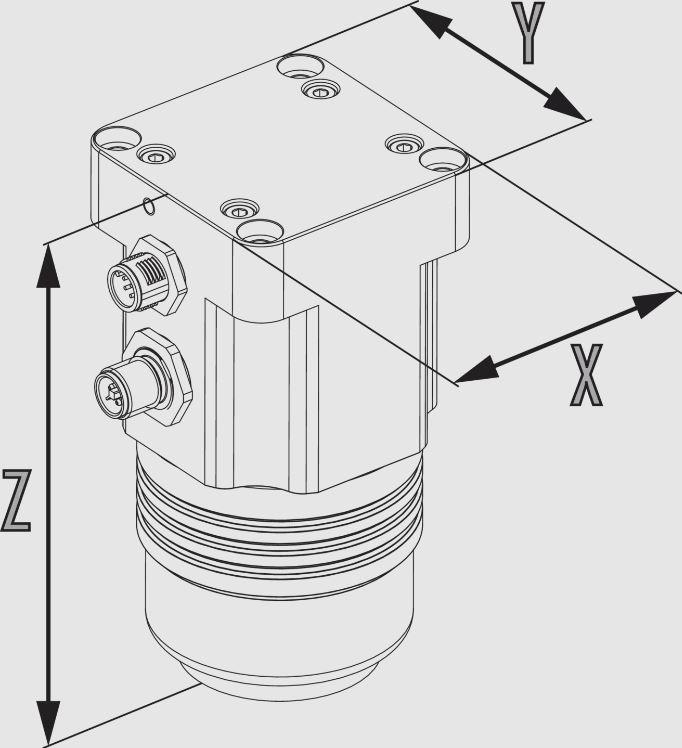

Dimensions
General notes on the series
